22.2653-21 | Stäubli Electrical Connectors
4 mm plug, screw connection, 2.5 mm², black, 22.2653-21
Order No.: 86F8980
EAN: 4099889679342
MPN:
22.2653-21
SLS425-ZL/M3 SCHWARZ
This item is no longer available.
As an alternative, we recommend the following item:
4 mm plug, screw connection, 2.5 mm², CAT II, black, 64.9701-21
Order No.: 22F1025
Manufacturer: Stäubli Electrical Connectors
per pc. 5.2479 € *

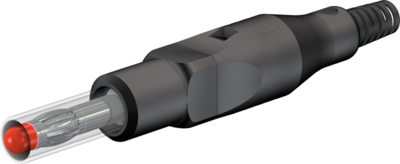

4 mm Plug, 22.2653-21, Stäubli Electrical Connectors
In-line, Ø 4 mm, with spring-loaded MULTILAM for self-assembly of test leads. With retractable sleeve to prevent accidental touching.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Colour | black | |
| Rated current | 32 A | |
| Touch safe | Yes | |
| Length | 75 mm | |
| Stackable | No | |
| diameter | 4 mm | |
| contact surface | nickel-plated | |
| Rated Voltage | 30 VAC/60 VDC | |
| Version | plug | |
| max. Cable diameter | 3.9 mm | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 100 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
