22.2632-21 | Stäubli Electrical Connectors
4 mm plug, solder connection, 2.5 mm², black, 22.2632-21
Order No.: 86F8926
EAN: 4099889678802
MPN:
22.2632-21
SLS425-A/N SCHWARZ
This item is no longer available.
As an alternative, we recommend the following item:
4 mm plug, solder connection, 2.5 mm², black, 64.1042-21
Order No.: 22F7041
Manufacturer: Stäubli Electrical Connectors
per pc. 1.8207 € *

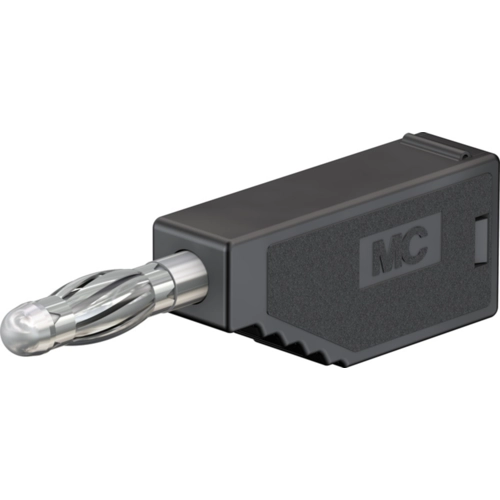

4 mm Plug, 22.2632-21, Stäubli Electrical Connectors
Stackable, Ø 4 mm, with spring-loaded MULTILAM for self-assembly of test leads.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder connection | |
| Colour | black | |
| Rated current | 32 A | |
| Touch safe | No | |
| Length | 47 mm | |
| Stackable | Yes | |
| diameter | 4 mm | |
| contact surface | nickel-plated | |
| Rated Voltage | 30 VAC/60 VDC | |
| Version | plug | |
| max. Cable diameter | 3.9 mm | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 100 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
