22.2627-25 | Stäubli Electrical Connectors

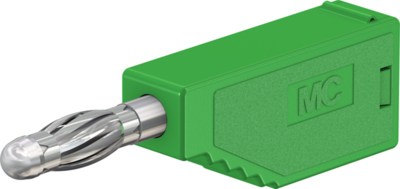

4 mm plug, solder connection, 1.0 mm², green, 22.2627-25

Order No.: 86F8911
EAN: 4099889678659
MPN:
22.2627-25
SLS410N GRÜN
22.2627-25 Stäubli Electrical Connectors Laboratory Connectors
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:

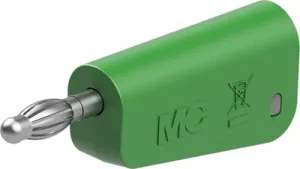

4 mm plug, solder connection, 1.0 mm², green, 64.1038-25
4 mm plug, solder connection, 1.0 mm², green, 64.1038-25
Order No.: 22F7005
Manufacturer: Stäubli Electrical Connectors
per pc. 1.6898 € *

4 mm Plug, 22.2627-25, Stäubli Electrical Connectors

Stackable, Ø 4 mm, with spring-loaded MULTILAM for self-assembly of test leads.

Technical specifications
Colour green
contact surface nickel-plated
max. Cable diameter 3 mm
diameter 4 mm
Length 47 mm
Cable cross-section 1.0 mm²
Stackable Yes
Touch safe No
Version plug
Connection solder connection
Rated Voltage 30 VAC/60 VDC
Rated current 19 A
Logistics
Customs tariff number 85369010
Original Packaging Bag with 100 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
Replacement

Order No.:

 22F7005

Manufacturer SKU:

 64.1038-25



Standard delivery time from the manufacturer is: On Request
1.69 € per pc. *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.6898 €
10 pcs.
1.4280 €
100 pcs.
1.3328 €
500 pcs.
1.2614 €
1000 pcs.
1.1662 €
