22.2609-22 | Stäubli Electrical Connectors

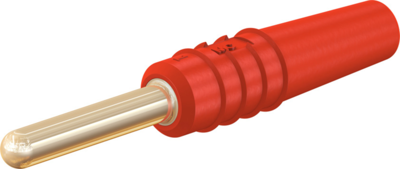

2 mm plug, solder connection, 0.5 mm², red, 22.2609-22
Unit Price (€ / pc.)
0.7497 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
0.75 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7497 €
25 pcs.
0.7140 €
100 pcs.
0.6307 €
500 pcs.
0.5950 €
1000 pcs.
0.5593 €
*incl. VAT plus shipping costs
Subject to prior sale
2 mm Plug, 22.2609-22, Stäubli Electrical Connectors
In-line, rigid, Ø 2 mm for self-assembly of test leads.
Technical specifications
| Colour | red | |
| contact surface | gold-plated | |
| max. Cable diameter | 2.1 mm | |
| diameter | 2 mm | |
| Length | 27 mm | |
| Cable cross-section | 0.5 mm² | |
| Stackable | No | |
| Touch safe | No | |
| Version | plug | |
| Connection | solder connection | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 10 A |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 100 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
