22.2603-27 | Stäubli Electrical Connectors
1 mm jack, solder connection, 0.25 mm², brown, 22.2603-27
Unit Price (€ / pc.)
2.7370 € *
Available: 57 pcs.
Total Price:
2.74 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7370 €
25 pcs.
2.5109 €
100 pcs.
2.3681 €
500 pcs.
2.2015 €
1000 pcs.
2.0706 €
*incl. VAT plus shipping costs
Subject to prior sale

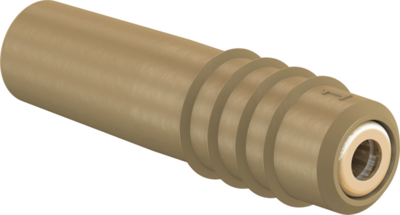

1 mm Jack, 22.2603-27, Stäubli Electrical Connectors
Ø 1 mm with spring-loaded MULTILAM for self-assembly of test leads.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder connection | |
| Colour | brown | |
| Rated current | 6 A | |
| Touch safe | No | |
| Length | 12 mm | |
| Stackable | No | |
| diameter | 1 mm | |
| contact surface | gold-plated | |
| Rated Voltage | 30 VAC/60 VDC | |
| Version | jack | |
| max. Cable diameter | 1.7 mm | |
| Cable cross-section | 0.25 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
