22.1086 | Stäubli Electrical Connectors

4 mm panel plug, screw connection, 0.5 mm², mounting Ø 4 mm, 22.1086

Order No.: 12F166
EAN: 4099889664089
MPN:
22.1086
SA486
Series: Powerline
22.1086 Stäubli Electrical Connectors Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
1.6065 € *
Available: 2,380 pcs.
Next delivery: 1,000 pcs. on 2025-11-10
Total Price:
1.61 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6065 €
10 pcs.
1.3685 €
100 pcs.
1.2614 €
500 pcs.
1.2019 €
1000 pcs.
1.0948 €
*incl. VAT plus shipping costs
Subject to prior sale

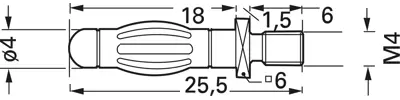

Panel-mount connectors, 4.0 mm, type MC SA486.

Made of lathed nickel-plated brass; Contact lamellae: hard-copper alloy. Rated current: max. 50 A. Operating temperatures: max. +150 °C.

Type: SA486, panel–mount connector

Technical specifications
Filter Property Value
Installation diameter 4 mm
Touch safe No
Rated current 50 A
diameter 4 mm
Cable cross-section 0.5 mm²
contact surface nickel-plated
Connection screw connection
Length 25 mm
Version panel plug
Logistics
Property Value
Country of origin CH
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
