22.1038 | Stäubli Electrical Connectors
2 mm socket, solder connection, 0.5 mm², 22.1038
Unit Price (€ / pc.)
2.1301 € *
Available: 4,195 pcs.
Total Price:
2.13 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1301 €
10 pcs.
1.9992 €
100 pcs.
1.8802 €
500 pcs.
1.7493 €
1000 pcs.
1.6184 €
*incl. VAT plus shipping costs
Subject to prior sale

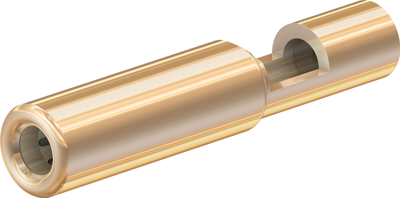

2 mm Insulating sleeve, 22.1038, Stäubli Electrical Connectors
Ø 2 mm rigid socket for self-assembly of test leads. Soft insulator.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder connection | |
| Rated Voltage | 30 VAC/60 VDC | |
| Cable cross-section | 0.5 mm² | |
| Rated current | 10 A | |
| diameter | 2 mm | |
| contact surface | gold-plated | |
| Version | socket | |
| Touch safe | No | |
| Length | 27 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
