22.1031 | Stäubli Electrical Connectors

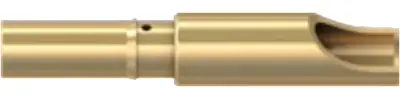

2 mm jack, solder connection, gold, 22.1031
Unit Price (€ / pc.)
6.1880 € *
Standard delivery time from the manufacturer is: On Request
Coupling, 22.1031, Stäubli Electrical Connectors
Coupling soldering, CuZn, Au, Nominal-Ø 2 mm, Rated current 25 A, Contact resistance ~0.5 mΩ.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 2 mm | |
| contact surface | gold-plated | |
| Touch safe | No | |
| Connection | solder connection | |
| Length | 19.7 mm | |
| Rated current | 25 A | |
| Colour | gold | |
| Version | jack |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
