22.1008 | Stäubli Electrical Connectors
1 mm jack, solder connection, 0.25 mm², 22.1008
Unit Price (€ / pc.)
2.6299 € *
Available: 980 pcs.
Next delivery: 650 pcs. on 2025-11-27
Total Price:
2.63 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6299 €
10 pcs.
2.2372 €
100 pcs.
2.0587 €
500 pcs.
1.9635 €
1000 pcs.
1.7850 €
*incl. VAT plus shipping costs
Subject to prior sale

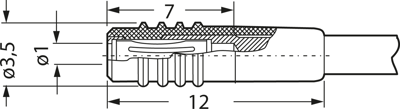

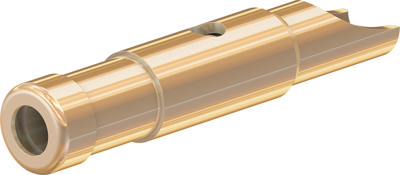

Jacks, 1.0 mm, type MC LS1-B.
1.0 mm jack with spring-loaded contact lamella, made of lathed gold-plated brass, solder connection up to 0.25 mm²; Rated voltage: 30 VAC/60 VDC. Rated current: 6.0 A.
Type: LS1–B, bright jack part
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder connection | |
| Rated current | 6 A | |
| diameter | 1 mm | |
| contact surface | gold-plated | |
| Touch safe | No | |
| Rated Voltage | 30 VAC/60 VDC | |
| Version | jack | |
| Cable cross-section | 0.25 mm² | |
| Length | 12 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
