15.0002-23 | Stäubli Electrical Connectors

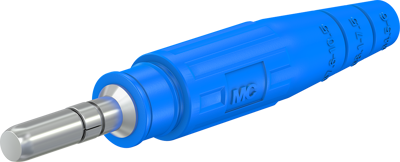

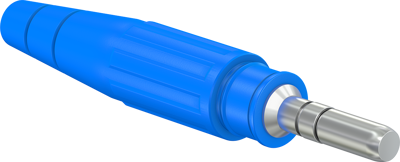

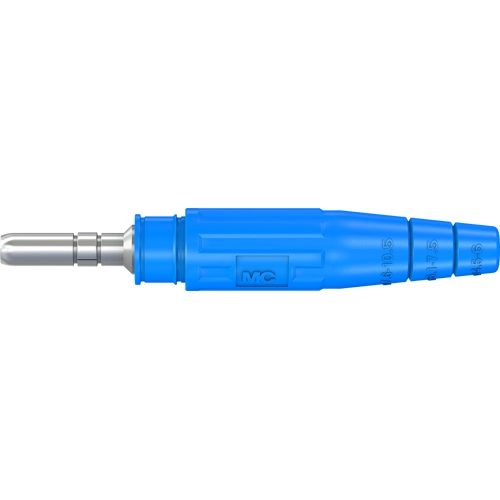

6 mm plug, crimp connection, 16 mm², blue, 15.0002-23
Unit Price (€ / pc.)
29.5596 € *
Available: 1 pcs.
Total Price:
29.56 € *
Price list
Quantity
Price per unit*
1 pcs.
29.5596 €
5 pcs.
27.9412 €
10 pcs.
26.2871 €
25 pcs.
24.6568 €
50 pcs.
22.9908 €
*incl. VAT plus shipping costs
Subject to prior sale
6 mm Plug, 15.0002-23, Stäubli Electrical Connectors
The 15.0002-23 is plug with locking device. This plug has crimp sleeves for highly flexible conductor with cross-section of 16 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 6 mm | |
| max. Cable diameter | 4.5 mm | |
| Rated Voltage | 600 V | |
| Touch safe | No | |
| Connection | crimp connection | |
| Length | 89 mm | |
| Stackable | No | |
| Rated current | 100 A | |
| Colour | blue | |
| Version | plug | |
| Cable cross-section | 16 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
