14.0034-23 | Stäubli Electrical Connectors

6 mm panel plug, threaded bolt, mounting Ø 18.5 mm, blue, 14.0034-23

Order No.: 25F903
EAN: 4099889673579
MPN:
14.0034-23
ID/S6AR-N-B4S BLAU
Series: Powerline

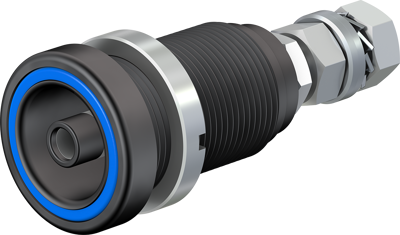

14.0034-23 Stäubli Electrical Connectors Laboratory Connectors Image 1

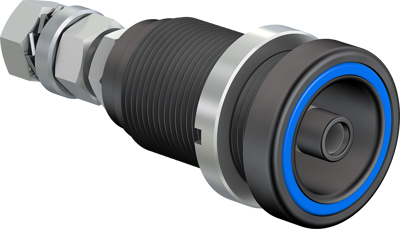

14.0034-23 Stäubli Electrical Connectors Laboratory Connectors Image 2

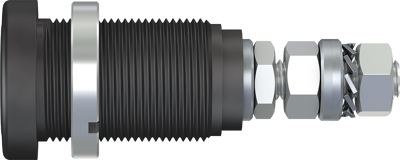

14.0034-23 Stäubli Electrical Connectors Laboratory Connectors Image 3
Image may differ
Unit Price (€ / pc.)
44.8392 € *
Available: 36 pcs.
Total Price:
44.84 € *
Price list
Quantity
Price per unit*
1 pcs.
44.8392 €
5 pcs.
42.3521 €
10 pcs.
39.8531 €
25 pcs.
37.3541 €
50 pcs.
34.8670 €
*incl. VAT plus shipping costs
Subject to prior sale

6 mm Panel plug, 14.0034-23, Stäubli Electrical Connectors

The 14.0034-23 safety flush-mounting plug is insulated plug designed for flush mounting in housings and panels. The plug is designed to mate with sockets KBT6AR-N.

The internal connection is made with an M6 threaded stud with nuts and washers.

Technical specifications
Filter Property Value
Connection threaded bolt
Colour blue
Rated current 80 A
Touch safe Yes
Length 58 mm
Stackable No
diameter 6 mm
contact surface nickel-plated
Rated Voltage 600 V
Version panel plug
Installation diameter 18.5 mm
Logistics
Property Value
Country of origin CH
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
