14.0004-22 | Stäubli Electrical Connectors
6 mm panel plug, threaded bolt, mounting Ø 18.5 mm, red, 14.0004-22
Unit Price (€ / pc.)
40.0792 € *
Available: 53 pcs.
Total Price:
40.08 € *
Price list
Quantity
Price per unit*
1 pcs.
40.0792 €
5 pcs.
37.8539 €
10 pcs.
35.6286 €
25 pcs.
33.3914 €
50 pcs.
31.1542 €
*incl. VAT plus shipping costs
Subject to prior sale

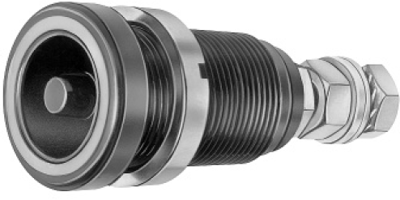

Panel plug, 14.0004-22, Stäubli Electrical Connectors
Model ID/S6AR-N-S safety flush-mounting plug is insulated plug designed for flush mounting in housings and panels. The plug is designed to mate with sockets KBT6AR-N. The resulting plug connections are securable by means of snap-in lock.
The internal connection is made with an M6 threaded stud with nuts and washers.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 600 V | |
| Rated current | 125 A | |
| Colour | red | |
| Version | panel plug | |
| Connection | threaded bolt | |
| diameter | 6 mm | |
| Touch safe | Yes | |
| Installation diameter | 18.5 mm | |
| contact surface | nickel-plated | |
| Length | 58 mm | |
| Stackable | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
