13.0003 | Stäubli Electrical Connectors
4 mm plug, screw connection, silver, 13.0003
Unit Price (€ / pc.)
3.7842 € *
Available: 853 pcs.
Total Price:
3.78 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7842 €
10 pcs.
3.3320 €
100 pcs.
2.9155 €
500 pcs.
2.8084 €
1000 pcs.
2.6299 €
*incl. VAT plus shipping costs
Subject to prior sale

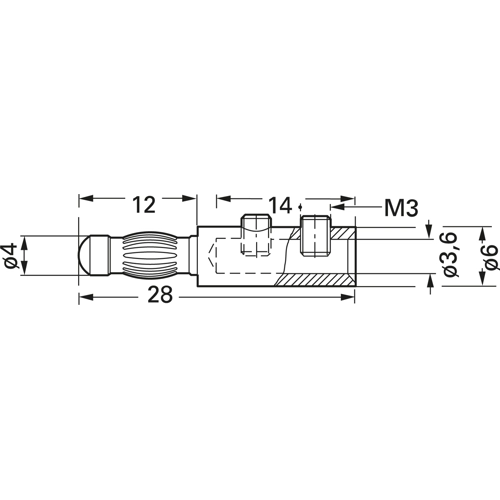

Low-voltage plugs, 4.0 mm, type MC SL4F/G.
For halogen lighting systems. Made of nickel-plated brass. With screw terminals; Contact lamella: hard-copper alloy. Continuous current: max. 50 A.
Type: SL4F/G, plug
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 4 mm | |
| contact surface | nickel-plated | |
| Touch safe | No | |
| Connection | screw connection | |
| Length | 28 mm | |
| Stackable | Yes | |
| Rated current | 50 A | |
| Colour | silver | |
| Version | plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
