62.7436-91021 | Stäubli Electrical Connectors

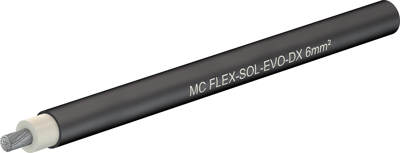

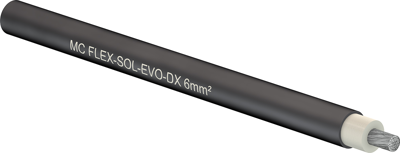

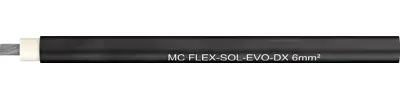

Polyolefine-photovoltaic cable, halogen free, Cableline, 6.0 mm², 78 x 0.3 mm, black, outer Ø 6.97 mm, 62.7436-91021
Unit Price (€ / mtr.)
1.2495 € *
Available: 450 mtr.
PV cable, 62.7436-91021, Stäubli Electrical Connectors
Halogen free cross-linked polyolefin double layers photovoltaic cables for use at the photovoltaic power systems.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | photovoltaic cable | |
| Cable cross-section | 6.0 mm² | |
| Cable structure | 78 x 0.3 mm | |
| Colour | black | |
| Core insulation material | polyolefine | |
| Outer diameter | 6.97 mm | |
| Halogen free | Yes | |
| Standard number | UL | |
| Cable material | copper, tin-plated | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (active) | -40 °C to 90 °C | |
| Rated voltage | 1.5 kV | |
| Rated voltage UL/CSA | 2 kV | |
| Test voltage | 15 kV |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444999 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
