62.7435-91021 | Stäubli Electrical Connectors

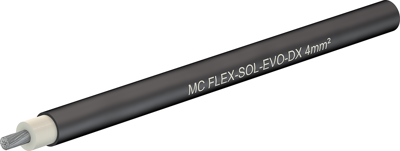

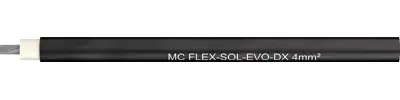

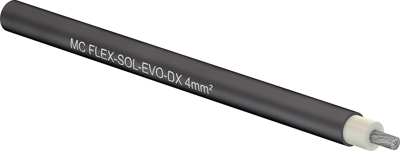

Polyolefine-photovoltaic cable, halogen free, Cableline, 4.0 mm², 52 x 0.3 mm, black, outer Ø 6.35 mm, 62.7435-91021
Unit Price (€ / mtr.)
1.3923 € *
Available: 310 mtr.
Total Price:
1.39 € *
Price list
Quantity
Price per unit*
1 mtr.
1.3923 €
10 mtr.
1.2852 €
50 mtr.
1.1781 €
100 mtr.
1.1186 €
500 mtr.
1.0472 €
*incl. VAT plus shipping costs
Subject to prior sale
PV cable, 62.7435-91021, Stäubli Electrical Connectors
Halogen free cross-linked polyolefin double layers photovoltaic cables for use at the photovoltaic power systems.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 4.0 mm² | |
| Rated voltage UL/CSA | 2 kV | |
| Product type | photovoltaic cable | |
| Core insulation material | polyolefine | |
| Test voltage | 15 kV | |
| Conductor category | CL.5 = fine stranded | |
| Standard number | UL | |
| Colour | black | |
| Rated voltage | 1.5 kV | |
| Cable structure | 52 x 0.3 mm | |
| Halogen free | Yes | |
| Temperature range (active) | -40 °C to 90 °C | |
| Outer diameter | 6.35 mm | |
| Cable material | copper, tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85446010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
