61.7667-10021 | Stäubli Electrical Connectors

Silicone-stranded wire, high flexible, halogen free, Cableline, 2.5 mm², black, outer Ø 4.6 mm, 61.7667-10021

Order No.: 94F1169
EAN: 4099891600570
MPN:
61.7667-10021
61.7667-21
Series: Cableline
61.7667-10021 Stäubli Electrical Connectors Insulated stranded wires

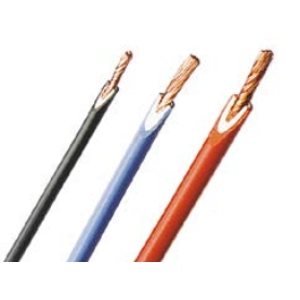

Image may differ
Unit Price (€ / mtr.)
5.4740 € *
Available: 57 mtr.
Leadtime: On Request **
Total Price:
5.47 € *
Price list
Quantity
Price per unit*
1 mtr.
5.4740 €
10 mtr.
5.0575 €
100 mtr.
4.6529 €
500 mtr.
4.3792 €
1000 mtr.
4.1055 €
*incl. VAT plus shipping costs
**Subject to prior sale

Insulated stranded wire, 61.7667-10021, Stäubli Electrical Connectors

The 61.7667-10021 is a super flexible stranded wire with reinforced, double-layer insulation for the highest safety (inside natural, outside colored). Damage to the outer layer of insulation can be more easily recognized due to the different color of the underlying layer. This product with tinned wire strands for continuous use at temperatures up to 150 °C.

Applications

  • Hand-held test leads for maximum safety requirements and high thermal stress
Technical specifications
Core insulation material silicone
Colour black
Outer diameter 4.6 mm
Test voltage 8 kV
Halogen free Yes
Cable structure 651 x 0.07 mm
Cable cross-section 2.5 mm²
Material silicone
Cable material copper
Temperature range (active) -5 °C to 90 °C
Rated voltage 1.5 kV
Logistics
Country of origin DE
Customs tariff number 85446090
Original Packaging Reel with 100 meters
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
