61.7644-10021 | Stäubli Electrical Connectors

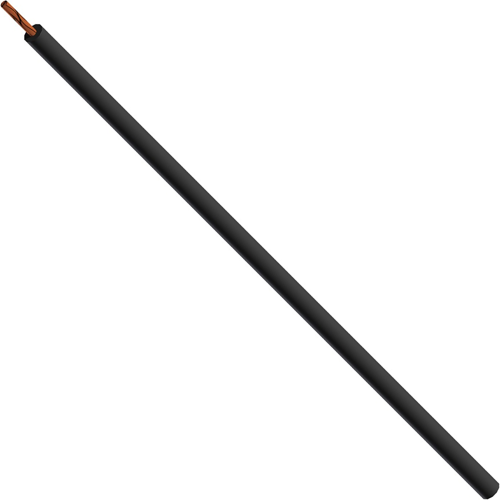

Silicone-stranded wire, highly flexible, halogen free, Cableline, 1.0 mm², 259 x 0.07 mm, black, outer Ø 3.9 mm, 61.7644-10021

Order No.: 94F1058
EAN: 4099891184919
MPN:
61.7644-10021
61.7644-21
Series: Cableline
61.7644-10021 Stäubli Electrical Connectors Insulated stranded wires
Image may differ
Unit Price (€ / mtr.)
4.2721 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
4.27 € *
Price list
Quantity
Price per unit*
1 mtr.
4.2721 €
10 mtr.
3.7604 €
100 mtr.
3.4153 €
500 mtr.
3.1654 €
1000 mtr.
2.9036 €
*incl. VAT plus shipping costs
Subject to prior sale

Stranded wire, 61.7644-10021, Stäubli Electrical Connectors

Super flexible stranded wire with reinforced insulation and tinned wire strands for continuous use at temperatures up to 150 °C.

Applications

  • Hand-held test leads for high thermal stress
Technical specifications
Outer diameter 3.9 mm
Standard number UL
Core insulation material silicone
Temperature range (active) -50 °C to 150 °C
Conductor category CL.6 = finest stranded
Cable material copper, tin-plated
Cable cross-section 1.0 mm²
Rated voltage 1.5 kV
Cable structure 259 x 0.07 mm
Test voltage 8 kV
Colour black
Halogen free Yes
Logistics
Customs tariff number 85446090
Country of origin DE
Original Packaging Reel with 100 meters
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
