61.7642-10023 | Stäubli Electrical Connectors

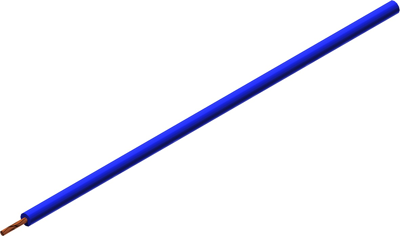

Silicone-stranded wire, highly flexible, halogen free, Cableline, 0.5 mm², 256 x 0.05 mm, blue, outer Ø 2.7 mm, 61.7642-10023
Unit Price (€ / mtr.)
2.8322 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2.83 € *
Price list
Quantity
Price per unit*
1 mtr.
2.8322 €
10 mtr.
2.4990 €
100 mtr.
2.2729 €
500 mtr.
2.1063 €
1000 mtr.
1.9397 €
*incl. VAT plus shipping costs
Subject to prior sale
Stranded wire, 61.7642-10023, Stäubli Electrical Connectors
Super flexible stranded wire with reinforced insulation and tinned wire strands for continuous use at temperatures up to 150 °C.
Applications
- Hand-held test leads for high thermal stress
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 2.7 mm | |
| Standard number | UL | |
| Core insulation material | silicone | |
| Temperature range (active) | -50 °C to 150 °C | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 0.5 mm² | |
| Rated voltage | 1.5 kV | |
| Cable structure | 256 x 0.05 mm | |
| Test voltage | 8 kV | |
| Colour | blue | |
| Halogen free | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85446090 |
| Country of origin | DE |
| Original Packaging | Reel with 100 meters |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
