61.7632-10022 | Stäubli Electrical Connectors

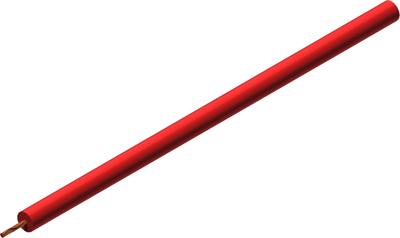

Silicone-switching strand, extremely flexible, halogen free, Cableline, 1.0 mm², 259 x 0.07 mm, red, outer Ø 5.5 mm, 61.7632-10022

Order No.: 94F1013
EAN: 4099891184476
MPN:
61.7632-10022
61.7632-22
Series: Cableline
61.7632-10022 Stäubli Electrical Connectors Insulated stranded wires
Image may differ
Unit Price (€ / mtr.)
9.5081 € *
Available: 8 mtr.
Total Price:
9.51 € *
Price list
Quantity
Price per unit*
1 mtr.
9.5081 €
10 mtr.
8.6513 €
50 mtr.
7.9849 €
100 mtr.
7.3423 €
500 mtr.
6.9139 €
*incl. VAT plus shipping costs
Subject to prior sale

Stranded wire, 61.7632-10022, Stäubli Electrical Connectors

Super flexible, reinforced insulated stranded wire. Super-fine Cu strand, bright-soft, tightly twisted.

Features

  • Silicone insulation
  • Halogen-free

Applications

  • Flexible high voltage wiring
  • Hand-held test leads for high voltage tests
Technical specifications
Filter Property Value
Colour red
Cable structure 259 x 0.07 mm
Outer diameter 5.5 mm
Core insulation material silicone
Rated voltage 5 kV
Halogen free Yes
Cable material copper, bright
Version extremely flexible
Product type switching strand
Test voltage 20 kV
Cable cross-section 1.0 mm²
Conductor category CL.6 = finest stranded
Temperature range (active) -50 °C to 90 °C
Logistics
Property Value
Country of origin DE
Customs tariff number 85446090
Original Packaging Reel with 100 meters
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
