61.7618-10033 | Stäubli Electrical Connectors
Silicone-switching strand, highly flexible, halogen free, Cableline, 70 mm², 8967 x 0.1 mm, transparent, outer Ø 16.4 mm, 61.7618-10033
Unit Price (€ / mtr.)
110.1821 € *
Available: 11 mtr.
Total Price:
110.18 € *
Price list
Quantity
Price per unit*
1 mtr.
110.1821 €
10 mtr.
97.8418 €
50 mtr.
89.0120 €
100 mtr.
82.3599 €
500 mtr.
75.6721 €
*incl. VAT plus shipping costs
Subject to prior sale
Flexible stranded wire, 61.7618-10033, Stäubli Electrical Connectors

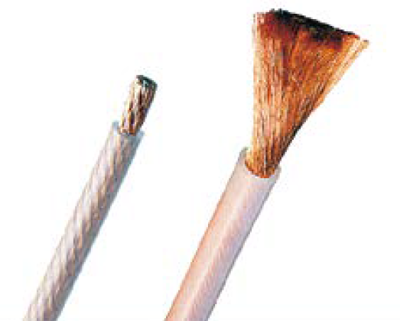

The 61.7618-10033 is a highly flexible stranded wire with reinforced insulation and super-fine Cu strand. It is suitable for current feeds and earth/ground wires in machine, plant and accumulator construction.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Standard number | UL | |
| Cable material | copper | |
| Test voltage | 14 kV | |
| Core insulation material | silicone | |
| Rated voltage UL/CSA | 1.5 kV | |
| Version | highly flexible | |
| Cable structure | 8967 x 0.1 mm | |
| Temperature range (active) | -50 °C to 90 °C | |
| Halogen free | Yes | |
| Outer diameter | 16.4 mm | |
| Product type | switching strand | |
| Colour | transparent | |
| Rated voltage | 1.5 kV | |
| Cable cross-section | 70 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Reel with 50 meters |
| Customs tariff number | 85446010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
