61.7612-10022 | Stäubli Electrical Connectors

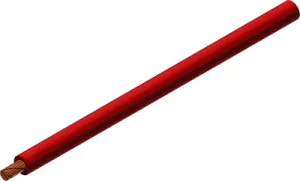

Silicone-switching strand, highly flexible, halogen free, Cableline, 6.0 mm², 1548 x 0.07 mm, red, outer Ø 6.2 mm, 61.7612-10022
Unit Price (€ / mtr.)
12.0904 € *
Available: 25 mtr.
Next delivery: 100 mtr. on 2025-11-17
Total Price:
12.09 € *
Price list
Quantity
Price per unit*
1 mtr.
12.0904 €
10 mtr.
10.6386 €
50 mtr.
9.6866 €
100 mtr.
8.9488 €
500 mtr.
8.2110 €
*incl. VAT plus shipping costs
Subject to prior sale
Stranded wire, 61.7612-10022, Stäubli Electrical Connectors
Highly flexible stranded wire with reinforced insulation. Super-fine Cu strand.
Applications
- Current feeds and earth/ground wires
- Plant and accumulator construction
- Safety test leads carrying high currents
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 1.5 kV | |
| Rated voltage | 1.5 kV | |
| Cable material | copper, bright | |
| Conductor category | CL.5 = fine stranded | |
| Test voltage | 8 kV | |
| Product type | switching strand | |
| Temperature range (active) | -50 °C to 90 °C | |
| Cable structure | 1548 x 0.07 mm | |
| Standard number | UL | |
| Core insulation material | silicone | |
| Halogen free | Yes | |
| Colour | red | |
| Outer diameter | 6.2 mm | |
| Version | highly flexible | |
| Cable cross-section | 6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Reel with 100 meters |
| Customs tariff number | 85446010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
