61.7553-10020 | Stäubli Electrical Connectors

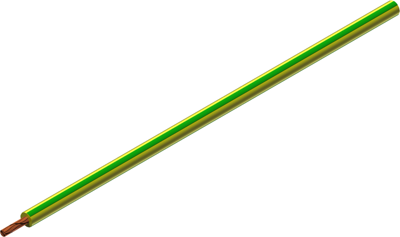

Silicone-stranded wire, highly flexible, halogen free, Cableline, 0.75 mm², 196 x 0.07 mm, green/yellow, outer Ø 2.7 mm, 61.7553-10020

Order No.: 94F8224
EAN: 4099891186340
MPN:
61.7553-10020
61.7553-20
Series: Cableline
61.7553-10020 Stäubli Electrical Connectors Insulated stranded wires
Image may differ
Unit Price (€ / mtr.)
2.9274 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2.93 € *
Price list
Quantity
Price per unit*
1 mtr.
2.9274 €
10 mtr.
2.5942 €
100 mtr.
2.2610 €
500 mtr.
2.0944 €
1000 mtr.
1.9278 €
*incl. VAT plus shipping costs
Subject to prior sale

Stranded wire, 61.7553-10020, Stäubli Electrical Connectors

Super flexible basic insulated stranded wire.

Applications

  • Internal wiring of very mobile components
  •  Super flexible connecting leads
Technical specifications
Outer diameter 2.7 mm
Standard number UL
Core insulation material silicone
Temperature range (active) -50 °C to 90 °C
Conductor category CL.6 = finest stranded
Cable material copper, bright
Cable cross-section 0.75 mm²
Rated voltage 600 V
Cable structure 196 x 0.07 mm
Test voltage 2.5 kV
Colour green/yellow
Halogen free Yes
Logistics
Customs tariff number 85366990
Country of origin CH
Original Packaging Reel with 100 meters
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
