60.7763-10021 | Stäubli Electrical Connectors
TPE-switching strand, highly flexible, Cableline, 0.5 mm², 129 x 0.07 mm, black, outer Ø 2.3 mm, 60.7763-10021
Unit Price (€ / mtr.)
1.6660 € *
Available: 100 mtr.
Total Price:
1.67 € *
Price list
Quantity
Price per unit*
1 mtr.
1.6660 €
10 mtr.
1.4280 €
100 mtr.
1.3209 €
500 mtr.
1.2614 €
1000 mtr.
1.1543 €
*incl. VAT plus shipping costs
Subject to prior sale

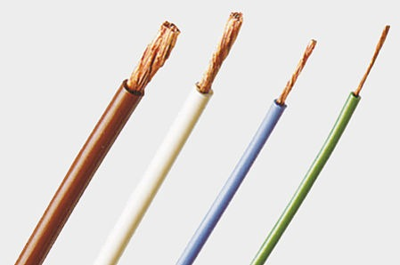

Stranded wire, 60.7763-10021, Stäubli Electrical Connectors
Highly flexible basic insulated stranded wire.
Applications
- Internal wiring of mobile components
- Highly flexible connecting leads for low-voltage applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | TPE | |
| Rated voltage UL/CSA | 1 kV | |
| Cable structure | 129 x 0.07 mm | |
| Cable material | copper, tin-plated | |
| Colour | black | |
| Cable cross-section | 0.5 mm² | |
| Temperature range (active) | -30 °C to 105 °C | |
| Standard number | UL | |
| Rated voltage | 1 kV | |
| Conductor category | CL.5 = fine stranded | |
| Test voltage | 6 kV | |
| Outer diameter | 2.3 mm | |
| Product type | switching strand | |
| Version | highly flexible |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Reel with 100 meters |
| Customs tariff number | 85446010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
