60.7180-10021 | Stäubli Electrical Connectors
TPE-stranded wire, high flexible, Cableline, 0.5 mm², 129 x 0.07 mm, black, outer Ø 2.1 mm, 60.7180-10021
Unit Price (€ / mtr.)
1.2971 € *
Available: 90 mtr.
Next delivery: 100 mtr. on 2025-06-26
Total Price:
1.30 € *
Price list
Quantity
Price per unit*
1 mtr.
1.2971 €
10 mtr.
1.1305 €
100 mtr.
1.0353 €
500 mtr.
0.9639 €
1000 mtr.
0.9044 €
*incl. VAT plus shipping costs
Subject to prior sale

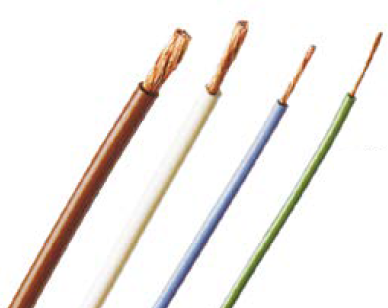

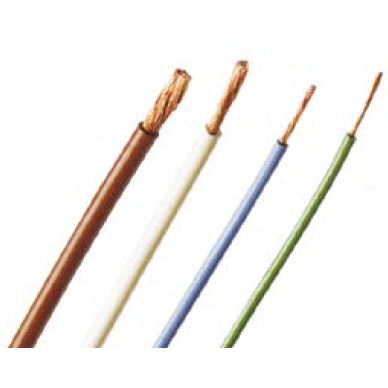

Insulated stranded wire, 60.7180-10021, Stäubli Electrical Connectors
Highly flexible basic insulated stranded wire for internal wiring of mobile components under moderate mechanical stress. This TPE-insulated lead can be used in a wider range of temperatures than comparable PVC-insulated leads. TPE has a substantially higher insulation resistance than PVC and is also free from chlorine, thus making a valuable contribution to the protection of the environment.
Technical specifications
| Colour | black | |
| Outer diameter | 2.1 mm | |
| Test voltage | 6 kV | |
| Core insulation material | TPE | |
| Cable material | copper | |
| Rated voltage | 500 V | |
| Temperature range (active) | -30 °C to 90 °C | |
| Cable structure | 129 x 0.07 mm | |
| Cable cross-section | 0.5 mm² |
Download
Logistics
| Customs tariff number | 85446010 |
| Original Packaging | Reel with 100 meters |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
