60.7175-10023 | Stäubli Electrical Connectors
TPE-switching strand, highly flexible, Cableline, 0.25 mm², 66 x 0.07 mm, blue, outer Ø 1.7 mm, 60.7175-10023
Unit Price (€ / mtr.)
0.9401 € *
Available: 90 mtr.
Total Price:
0.94 € *
Price list
Quantity
Price per unit*
1 mtr.
0.9401 €
10 mtr.
0.8092 €
100 mtr.
0.7616 €
500 mtr.
0.7021 €
1000 mtr.
0.6664 €
*incl. VAT plus shipping costs
Subject to prior sale

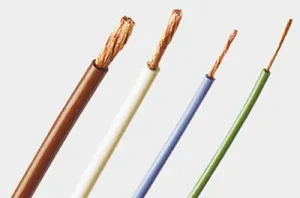

Insulated stranded wire, 60.7175-10023, Stäubli Electrical Connectors
Highly flexible basic insulated stranded wire for internal wiring of mobile components under moderate mechanical stress. This TPE-insulated lead can be used in a wider range of temperatures than comparable PVC-insulated leads. TPE has a substantially higher insulation resistance than PVC and is also free from chlorine, thus making a valuable contribution to the protection of the environment.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | blue | |
| Cable structure | 66 x 0.07 mm | |
| Outer diameter | 1.7 mm | |
| Core insulation material | TPE | |
| Rated voltage | 500 V | |
| Cable material | copper | |
| Version | highly flexible | |
| Product type | switching strand | |
| Test voltage | 5 kV | |
| Cable cross-section | 0.25 mm² | |
| Temperature range (active) | -30 °C to 90 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85446010 |
| Original Packaging | Reel with 100 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
