60.7088-10020 | Stäubli Electrical Connectors
PVC-switching strand, Cableline, 1.5 mm², 392 x 0.07 mm, green/yellow, outer Ø 3.9 mm, 60.7088-10020
Unit Price (€ / mtr.)
2.5109 € *
Available: 20 mtr.
Total Price:
2.51 € *
Price list
Quantity
Price per unit*
1 mtr.
2.5109 €
10 mtr.
2.1896 €
100 mtr.
2.0230 €
500 mtr.
1.8326 €
1000 mtr.
1.7255 €
*incl. VAT plus shipping costs
Subject to prior sale

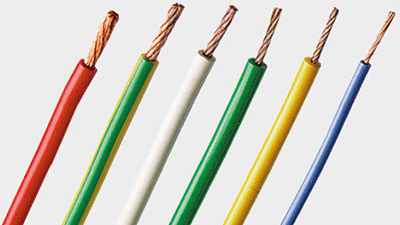

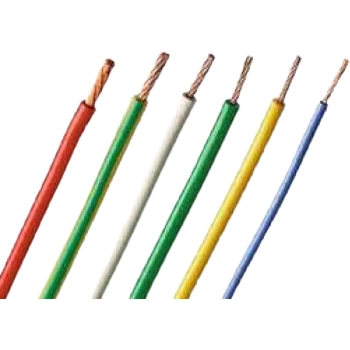

Stranded wire, 60.7088-10020, Stäubli Electrical Connectors
Highly flexible stranded wire with reinforced insulation.
Applications
- Manufacture of test leads
- External wiring of movable elements
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 1.5 kV | |
| Test voltage | 8 kV | |
| Halogen free | No | |
| Cable cross-section | 1.5 mm² | |
| Standard number | UL | |
| Colour | green/yellow | |
| Cable material | copper | |
| Core insulation material | PVC | |
| Cable structure | 392 x 0.07 mm | |
| Temperature range (active) | -10 °C to 70 °C | |
| Outer diameter | 3.9 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85446090 |
| Country of origin | DE |
| Original Packaging | Reel with 100 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
