60.7085-10029 | Stäubli Electrical Connectors

PVC-stranded wire, high flexible, Cableline, 0.5 mm², 129 x 0.07 mm, white, outer Ø 2.3 mm, 60.7085-10029

Order No.: 94F8331
EAN: 4099891759148
MPN:
60.7085-10029
60.7085-29
Series: Cableline
60.7085-10029 Stäubli Electrical Connectors Insulated stranded wires

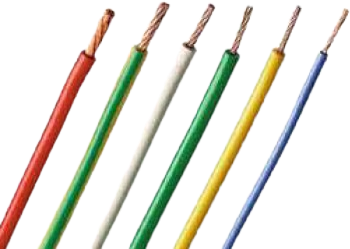

Image may differ
Unit Price (€ / mtr.)
1.2852 € *
Available: 100 mtr.
Total Price:
1.29 € *
Price list
Quantity
Price per unit*
1 mtr.
1.2852 €
10 mtr.
1.1186 €
100 mtr.
1.0353 €
500 mtr.
0.9520 €
1000 mtr.
0.9044 €
*incl. VAT plus shipping costs
Subject to prior sale

PVC-Stranded wire, 60.7085-10029, Stäubli Electrical Connectors

Highly flexible stranded wire with reinforced insulation.

Technical specifications
Outer diameter 2.3 mm
Standard number UL
Core insulation material PVC
Temperature range (active) -10 °C to 70 °C
Material PVC
Cable cross-section 0.5 mm²
Rated voltage 1500 V
Cable structure 129 x 0.07 mm
Test voltage 8 kV
Colour white
Halogen free No
Logistics
Customs tariff number 85446090
Country of origin DE
Original Packaging Reel with 100 meters
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
