60.7033-10020 | Stäubli Electrical Connectors
PVC-stranded wire, high flexible, Cableline, 2.5 mm², 651 x 0.07 mm, green/yellow, outer Ø 3.9 mm, 60.7033-10020
Unit Price (€ / mtr.)
3.6890 € *
Available: 38 mtr.
Total Price:
3.69 € *
Price list
Quantity
Price per unit*
1 mtr.
3.6890 €
10 mtr.
3.2487 €
100 mtr.
2.9512 €
500 mtr.
2.7370 €
1000 mtr.
2.5109 €
*incl. VAT plus shipping costs
Subject to prior sale
PVC stranded wire, 60.7033-10020, Stäubli Electrical Connectors

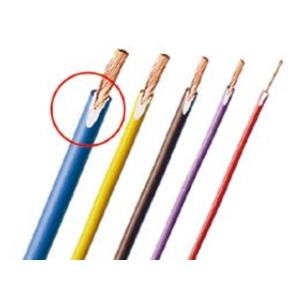

Highly flexible stranded wire with reinforced, double-layer insulation for the highest safety (inside natural or white, outside coloured). Damage to the outer layer of insulation can be more easily recognised due to the different colour of the underlying layer.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature range (active) | -10 °C to 70 °C | |
| Rated voltage | 1500 V | |
| Test voltage | 8 kV | |
| Outer diameter | 3.9 mm | |
| Core insulation material | PVC | |
| Halogen free | No | |
| Material | PVC | |
| Colour | green/yellow | |
| Standard number | UL | |
| Cable structure | 651 x 0.07 mm | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85446010 |
| Original Packaging | Reel with 100 meters |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
