60.7032-10022 | Stäubli Electrical Connectors

PVC-switching strand, highly flexible, Cableline, 2.5 mm², 651 x 0.07 mm, red, outer Ø 4.4 mm, 60.7032-10022

Order No.: 94F8280
EAN: 4099891186685
MPN:
60.7032-10022
60.7032-22
Series: Cableline
60.7032-10022 Stäubli Electrical Connectors Insulated stranded wires

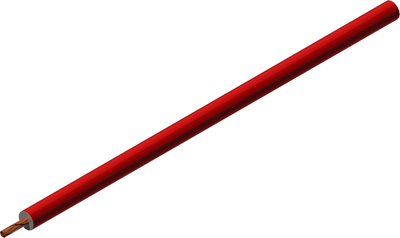

Image may differ
Unit Price (€ / mtr.)
3.8199 € *
Available: 221 mtr.
Total Price:
3.82 € *
Price list
Quantity
Price per unit*
1 mtr.
3.8199 €
10 mtr.
3.3796 €
100 mtr.
3.0583 €
500 mtr.
2.8322 €
1000 mtr.
2.5942 €
*incl. VAT plus shipping costs
Subject to prior sale

Stranded wire, 60.7032-10022, Stäubli Electrical Connectors

Highly flexible stranded wire with reinforced, double-layer insulation for the highest safety. Damage to the outer layer of insulation can be more easily recognized due to the different color of the underlying layer.

Applications

  • Manufacture of test leads
  • External wiring of movable elements
Technical specifications
Filter Property Value
Colour red
Cable structure 651 x 0.07 mm
Outer diameter 4.4 mm
Core insulation material PVC
Rated voltage 1.5 kV
Halogen free No
Cable material copper, bright
Version highly flexible
Product type switching strand
Test voltage 8 kV
Cable cross-section 2.5 mm²
Conductor category CL.5 = fine stranded
Standard number UL
Temperature range (active) -10 °C to 70 °C
Logistics
Property Value
Country of origin DE
Customs tariff number 85446010
Original Packaging Reel with 100 meters
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
