60.7028-10021 | Stäubli Electrical Connectors

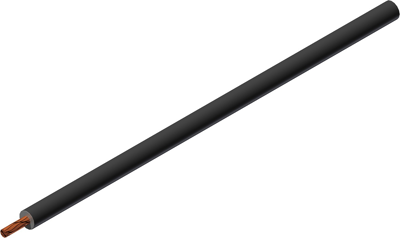

PVC-stranded wire, highly flexible, Cableline, 0.75 mm², 196 x 0.07 mm, black, outer Ø 3.5 mm, 60.7028-10021

Order No.: 94F8270
EAN: 4099891186586
MPN:
60.7028-10021
60.7028-21
Series: Cableline
60.7028-10021 Stäubli Electrical Connectors Insulated stranded wires
Image may differ
Unit Price (€ / mtr.)
2.0230 € *
Available: 65 mtr.
Total Price:
2.02 € *
Price list
Quantity
Price per unit*
1 mtr.
2.0230 €
10 mtr.
1.7612 €
100 mtr.
1.5946 €
500 mtr.
1.4756 €
1000 mtr.
1.3566 €
*incl. VAT plus shipping costs
Subject to prior sale

Stranded wire, 60.7028-10021, Stäubli Electrical Connectors

Highly flexible stranded wire with reinforced, double-layer insulation for the highest safety. Damage to the outer layer of insulation can be more easily recognized due to the different color of the underlying layer.

Applications

  • Manufacture of test leads
  • External wiring of movable elements
Technical specifications
Rated voltage 1.5 kV
Cable material copper, bright
Standard number UL
Cable cross-section 0.75 mm²
Cable structure 196 x 0.07 mm
Colour black
Temperature range (active) -10 °C to 70 °C
Conductor category CL.6 = finest stranded
Test voltage 8 kV
Core insulation material PVC
Outer diameter 3.5 mm
Halogen free No
Logistics
Country of origin DE
Customs tariff number 85446010
Original Packaging Reel with 100 meters
Compliance
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
