60.7026-10023 | Stäubli Electrical Connectors
PVC-stranded wire, high flexible, Cableline, 0.25 mm², 66 x 0.07 mm, blue, outer Ø 2 mm, 60.7026-10023
Unit Price (€ / mtr.)
1.2376 € *
Available: 30 mtr.
Total Price:
1.24 € *
Price list
Quantity
Price per unit*
1 mtr.
1.2376 €
10 mtr.
1.0829 €
100 mtr.
0.9877 €
500 mtr.
0.9282 €
1000 mtr.
0.8449 €
*incl. VAT plus shipping costs
Subject to prior sale
PVC stranded wire, 60.7026-10023, Stäubli Electrical Connectors

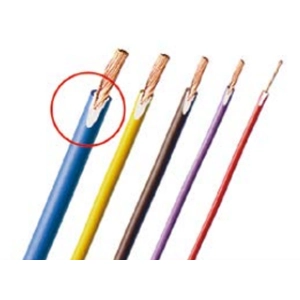

Highly flexible stranded wire with reinforced, double-layer insulation for the highest safety (inside natural or white, outside coloured). Damage to the outer layer of insulation can be more easily recognised due to the different colour of the underlying layer.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 2 mm | |
| Cable structure | 66 x 0.07 mm | |
| Rated voltage | 1500 V | |
| Material | PVC | |
| Halogen free | No | |
| Colour | blue | |
| Cable cross-section | 0.25 mm² | |
| Standard number | UL | |
| Core insulation material | PVC | |
| Temperature range (active) | -10 °C to 70 °C | |
| Test voltage | 8 kV |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Reel with 100 meters |
| Customs tariff number | 85446010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
