60.7026-10022 | Stäubli Electrical Connectors
PVC-stranded wire, high flexible, Cableline, 0.25 mm², 66 x 0.07 mm, red, outer Ø 2 mm, 60.7026-10022
Unit Price (€ / mtr.)
1.2376 € *
Available: 100 mtr.
Total Price:
1.24 € *
Price list
Quantity
Price per unit*
1 mtr.
1.2376 €
10 mtr.
1.0829 €
100 mtr.
0.9877 €
500 mtr.
0.9282 €
1000 mtr.
0.8449 €
*incl. VAT plus shipping costs
Subject to prior sale
PVC stranded wire, 60.7026-10022, Stäubli Electrical Connectors

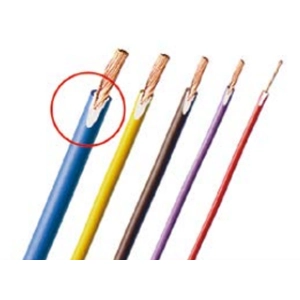

Highly flexible stranded wire with reinforced, double-layer insulation for the highest safety (inside natural or white, outside coloured). Damage to the outer layer of insulation can be more easily recognised due to the different colour of the underlying layer.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PVC | |
| Standard number | UL | |
| Outer diameter | 2 mm | |
| Test voltage | 8 kV | |
| Halogen free | No | |
| Temperature range (active) | -10 °C to 70 °C | |
| Colour | red | |
| Material | PVC | |
| Rated voltage | 1500 V | |
| Cable structure | 66 x 0.07 mm | |
| Cable cross-section | 0.25 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85446010 |
| Original Packaging | Reel with 100 meters |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
