60.7017-10021 | Stäubli Electrical Connectors
PVC-switching strand, highly flexible, Cableline, 10 mm², 2556 x 0.07 mm, black, outer Ø 7 mm, 60.7017-10021
Unit Price (€ / mtr.)
9.9960 € *
Available: 17 mtr.
Next delivery: 100 mtr. on 2025-12-05
Total Price:
10.00 € *
Price list
Quantity
Price per unit*
1 mtr.
9.9960 €
10 mtr.
8.7822 €
100 mtr.
7.7112 €
500 mtr.
7.4137 €
1000 mtr.
7.1281 €
*incl. VAT plus shipping costs
Subject to prior sale

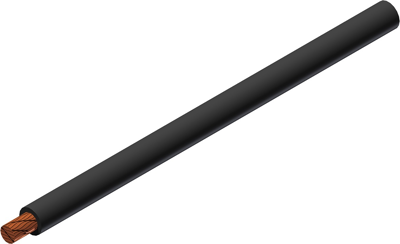

Stranded wire, 60.7017-10021, Stäubli Electrical Connectors
Highly flexible stranded wire with reinforced insulation.
Applications
- Current feeds and earth/ground wires
- Plant and accumulator construction
- Safety test leads carrying high currents
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PVC | |
| Test voltage | 8 kV | |
| Outer diameter | 7 mm | |
| Product type | switching strand | |
| Colour | black | |
| Temperature range (active) | -10 °C to 70 °C | |
| Cable cross-section | 10 mm² | |
| Version | highly flexible | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Cable structure | 2556 x 0.07 mm | |
| Rated voltage | 1.5 kV | |
| Rated voltage UL/CSA | 1.5 kV | |
| Standard number | UL | |
| Halogen free | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85446010 |
| Original Packaging | Reel with 100 meters |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
