60.7014-10033 | Stäubli Electrical Connectors
PVC-switching strand, highly flexible, Cableline, 4.0 mm², 1036 x 0.07 mm, transparent, outer Ø 4.8 mm, 60.7014-10033
Unit Price (€ / mtr.)
4.4387 € *
Available: 203 mtr.
Total Price:
4.44 € *
Price list
Quantity
Price per unit*
1 mtr.
4.4387 €
10 mtr.
3.8913 €
100 mtr.
3.4272 €
500 mtr.
3.2963 €
1000 mtr.
3.0702 €
*incl. VAT plus shipping costs
Subject to prior sale

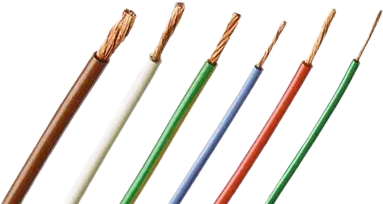

Stranded wire, 60.7014-10033, Stäubli Electrical Connectors
The 60.7014-10033 highly flexible stranded wire with reinforced insulation is suitable for current feeds and earth/ground wires in machine, plant and accumulator construction and also for safety test leads carrying high currents.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Test voltage | 10 kV | |
| Product type | switching strand | |
| Temperature range (active) | -10 °C to 70 °C | |
| Cable material | copper, bright | |
| Conductor category | CL.5 = fine stranded | |
| Standard number | UL | |
| Cable cross-section | 4.0 mm² | |
| Outer diameter | 4.8 mm | |
| Cable structure | 1036 x 0.07 mm | |
| Rated voltage | 1.5 kV | |
| Colour | transparent | |
| Version | highly flexible | |
| Halogen free | No | |
| Core insulation material | PVC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
