60.7012-10020 | Stäubli Electrical Connectors

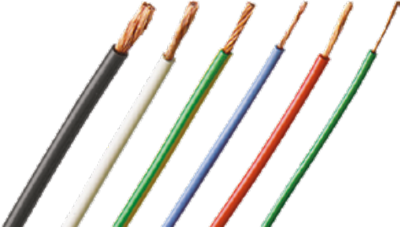

PVC-stranded wire, high flexible, Cableline, 2.5 mm², 651 x 0.07 mm, green/yellow, outer Ø 3.6 mm, 60.7012-10020
Unit Price (€ / mtr.)
3.3558 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
3.36 € *
Price list
Quantity
Price per unit*
1 mtr.
3.3558 €
10 mtr.
2.9750 €
100 mtr.
2.5823 €
500 mtr.
2.4038 €
1000 mtr.
2.2134 €
*incl. VAT plus shipping costs
Subject to prior sale
PVC stranded wire, 60.7012-10020, Stäubli Electrical Connectors
Highly flexible basic insulated stranded wire.
Internal wiring of mobile components under moderate mechanical stress. Highly flexible connecting leads for low-voltage applications in the laboratory field.
Technical specifications
| Halogen free | No | |
| Test voltage | 7.5 kV | |
| Temperature range (active) | -10 °C to 70 °C | |
| Core insulation material | PVC | |
| Cable structure | 651 x 0.07 mm | |
| Cable material | copper | |
| Rated voltage | 750 V | |
| Bending radius moved | 36 mm | |
| Colour | green/yellow | |
| Outer diameter | 3.6 mm | |
| Material | PVC | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
