67.9764-22 | Stäubli Electrical Connectors

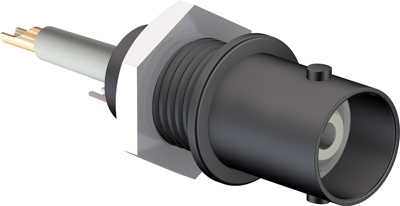

BNC panel socket 50 Ω, RG-58, solder connection, straight, 67.9764-22
Unit Price (€ / pc.)
7.5803 € *
Available: 31 pcs.
Total Price:
7.58 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5803 €
25 pcs.
6.6759 €
100 pcs.
5.8429 €
500 pcs.
5.6287 €
1000 pcs.
5.4621 €
*incl. VAT plus shipping costs
Subject to prior sale
BNC panel sockets, colored insulation, type XBB-.
Insulated; Panel thickness: max. 5.0 mm. Rated voltage: 1000 V CAT II, 600 V CAT III. Connection of the inner conductor type P/L: silver wire, insulated with Teflon/round solder pin, gold-plated brass. Shield connection type P/L: copper wire, silver-plated/solder lug, brass, silver-plated. Operating temperatures: +5.0 to +40 °C. Supplied with hex nut (with across gaps 13 mm), contact receptacles and crimp ferrules.
Technical attributes (type, connection type, color): XBB-L, solder connection, red
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Connector | BNC | |
| Cable Group | RG-58 | |
| Design | straight | |
| Contact material | brass | |
| Contact connection | solder connection | |
| Version | panel socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
