61.7580-10022 | Stäubli Electrical Connectors

Coaxial cable, 45 Ω, SILI-SC 0.5/1.0, red

Order No.: 96F921
EAN: 4099891758806
MPN:
61.7580-10022
61.7580-22
Series: Cableline
61.7580-10022 Stäubli Electrical Connectors Coaxial Cables

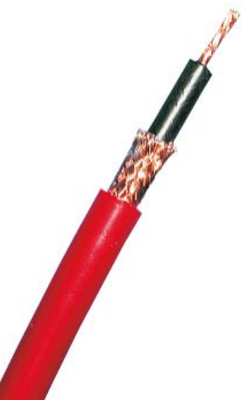

Image may differ
Unit Price (€ / mtr.)
7.3066 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
7.31 € *
Price list
Quantity
Price per unit*
1 mtr.
7.3066 €
10 mtr.
6.7711 €
50 mtr.
6.2237 €
100 mtr.
5.8548 €
500 mtr.
5.4978 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial cable, 61.7580-10022, Stäubli Electrical Connectors

Shielded, highly flexible coaxial cable. Inner core stranded Cu, shield Cu mesh. Core insulation and outer insulation silicone with high temperature resistance.

Technical specifications
Filter Property Value
Shielding shielded
min. operating temperature -80 °C
Impedance 45 Ω
max. operating temperature 150 °C
Colour red
Cable material copper
Cable structure 256 x 0.05 mm
Outer diameter 4.9 mm
Logistics
Property Value
Customs tariff number 85442000
Country of origin DE
Original Packaging Reel with 100 meters
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
