23.0330-20 | Stäubli Electrical Connectors

Pole terminal, 4 mm, yellow/green, 30 VAC/60 VDC, 35 A, M4 threaded bolt, nickel-plated, 23.0330-20

Order No.: 86F8719
EAN: 842640102382
MPN:
23.0330-20
PK4-T GRÜN/GELB

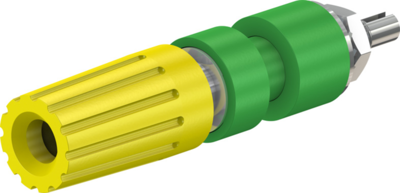

23.0330-20 Stäubli Electrical Connectors Binding Posts Image 1

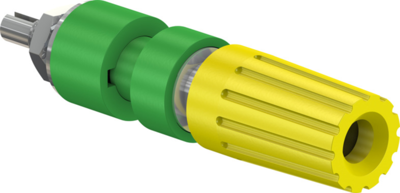

23.0330-20 Stäubli Electrical Connectors Binding Posts Image 2
23.0330-20 Stäubli Electrical Connectors Binding Posts Image 3
Image may differ
Unit Price (€ / pc.)
6.4736 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
6.47 € *
Price list
Quantity
Price per unit*
1 pcs.
6.4736 €
25 pcs.
5.6882 €
100 pcs.
5.3788 €
500 pcs.
5.2003 €
1000 pcs.
4.8790 €
*incl. VAT plus shipping costs
Subject to prior sale

Pole terminal, 23.0330-20, Stäubli Electrical Connectors

4 mm pole terminal green-yellow. Insulated, rigid, Ø 4 mm, and captive insulation head, provided with Ø 2.5 mm cross hole for quick clamping of wires. Turned brass parts. Installation with anti-twist protection in front panels up to max. 4 mm thickness.

Threaded stud M4.

Technical specifications
diameter 4 mm
Colour yellow/green
Rated Voltage 30 VAC/60 VDC
Rated current 35 A
Installation diameter 6.6 mm
Connection M4 threaded bolt
contact surface nickel-plated
Length 48.5 mm
Logistics
Customs tariff number 85369010
Original Packaging Bag with 25 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
