23.0290-21 | Stäubli Electrical Connectors

Pole terminal, 2 mm, black, 30 VAC/60 VDC, 15 A, M3 threaded bolt, nickel-plated, 23.0290-21

Order No.: 86F8717
EAN: 842640102368
MPN:
23.0290-21
PK2-T SCHWARZ

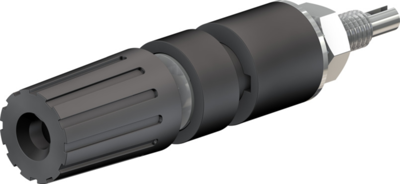

23.0290-21 Stäubli Electrical Connectors Binding Posts Image 1

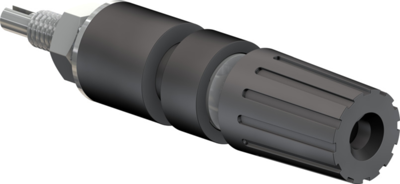

23.0290-21 Stäubli Electrical Connectors Binding Posts Image 2
23.0290-21 Stäubli Electrical Connectors Binding Posts Image 3
Image may differ
Unit Price (€ / pc.)
4.7957 € *
Available: 57 pcs.
Total Price:
4.80 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7957 €
25 pcs.
4.2245 €
100 pcs.
3.9865 €
500 pcs.
3.8437 €
1000 pcs.
3.6176 €
*incl. VAT plus shipping costs
Subject to prior sale

Pole terminal, 23.0290-21, MULTI-CONTACT

2 mm pole clamp black. Insulated, with rigid Ø 2 mm socket and captive insulating head, provided with Ø 2 mm cross hole for quick wire clamping. Brass turned part. Installation with anti-twist protection in front panels up to max. 4 mm thickness.

Technical specifications
diameter 2 mm
Colour black
Rated Voltage 30 VAC/60 VDC
Rated current 15 A
Installation diameter 8 mm
Connection M3 threaded bolt
contact surface nickel-plated
Length 38.5 mm
Logistics
Country of origin DE
Customs tariff number 85369010
Original Packaging Bag with 25 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
