32.0419-0064UL | Stäubli Electrical Connectors

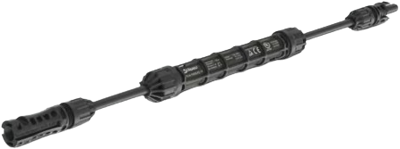

In-line fuse, 4 mm solar plug to 4 mm solar coupling socket, 0.64 m, 6.0 mm², black, 1.5 kV, 4 A, 32.0419-0064UL
Unit Price (€ / pc.)
21.7532 € *
Available: 2 pcs.
In-line fuse, 32.0419-0064UL, Stäubli Electrical Connectors
The In-line fuse 32.0419-0064UL with a crimping connection guarantees a long-lasting, stable connection in comparison to conventional omega-style clips: Minimal energy loss, low heat generation. Robust housing, safety class IP68. Cable cross-section 10 AWG/6 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | in-line fuse | |
| Connection (1) | 4 mm solar plug | |
| Connection (2) | 4 mm solar coupling socket | |
| Cable length | 0.64 m | |
| Colour | black | |
| Cable cross-section | 6.0 mm² | |
| Rated current | 4 A | |
| Rated voltage | 1.5 kV |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
