67.9756-10021 | Stäubli Electrical Connectors

Coaxial cable, BNC plug (straight) to BNC plug (straight), 45 Ω, 1 m, 67.9756-10021

Order No.: 79F3308
EAN: 4099891760106
MPN:
67.9756-10021
XLSS/SIL 1,0M SCHWARZ
Series: HF

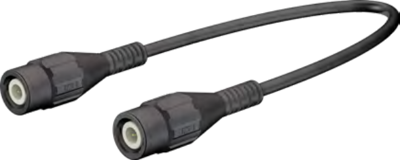

67.9756-10021 Stäubli Electrical Connectors Assembled Coaxial Cables Image 1
67.9756-10021 Stäubli Electrical Connectors Assembled Coaxial Cables Image 2
Image may differ
Unit Price (€ / pc.)
23.3954 € *
Available: 7 pcs.
Total Price:
23.40 € *
Price list
Quantity
Price per unit*
1 pcs.
23.3954 €
5 pcs.
22.0150 €
10 pcs.
20.6346 €
50 pcs.
19.2661 €
100 pcs.
17.8976 €
*incl. VAT plus shipping costs
Subject to prior sale

BNC test lead, 67.9756-10021, Stäubli Electrical Connectors

The 67.9756-10021 is a touch-protected silicone insulated coaxial test leads with BNC male connectors on both ends, e. g. for connecting measuring instruments. The shield of the BNC connector is nickel-plated, the contact pins of the inner conductor are in gold-plated brass.

Technical specifications
Cable length 1 m
Insulation colour black
Connection (2) BNC plug (straight)
Connection (1) BNC plug (straight)
Impedance 45 Ω
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
