66.9755-22 | Stäubli Electrical Connectors
Alligator clip, red, max. 20 mm, L 82.2 mm, CAT II, socket 4 mm, 66.9755-22
Unit Price (€ / pc.)
5.6882 € *
Available: 69 pcs.
Next delivery: 100 pcs. on 2025-06-06
Total Price:
5.69 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6882 €
25 pcs.
4.9980 €
100 pcs.
4.3911 €
500 pcs.
4.2126 €
1000 pcs.
3.9389 €
*incl. VAT plus shipping costs
Subject to prior sale
Aligator clip, 66.9755-22, Stäubli Electrical Connectors

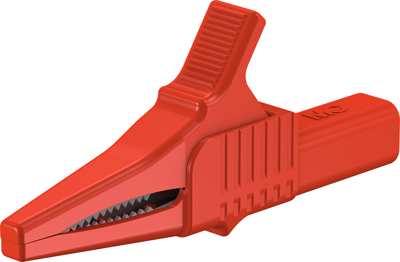

The 66.9755-22 is red aligator clip made of brass with insulation on all sides and has a toothed jaw for wide grip with surface for fine wire.This product also has Ø 4 mm rigid socket in insulator accepting spring-loaded and Ø 4 mm plugs with rigid insulating sleeve.
Technical specifications
| clamping force range | max. 20 mm | |
| Connection | socket 4 mm | |
| Colour | red | |
| Contact material | brass | |
| contact surface | nickel-plated | |
| Rated category | CAT II | |
| Rated Voltage | 1000 V | |
| Rated current | 32 A | |
| Length | 82.2 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
