66.9447-21 | Stäubli Electrical Connectors
Alligator clip, black, thread M5, L 170 mm, CAT IV, socket 4 mm, 66.9447-21
Unit Price (€ / pc.)
103.1730 € *
Available: 5 pcs.
Total Price:
103.17 € *
Price list
Quantity
Price per unit*
1 pcs.
103.1730 €
5 pcs.
96.2948 €
*incl. VAT plus shipping costs
Subject to prior sale

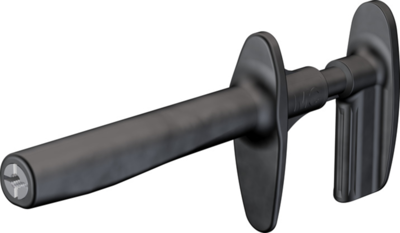

Single-collet plier, 66.9447-21, Stäubli Electrical Connectors
The 66.9447-21 is a black single-collet plier for fast and safe contacting to M5 threaded bolt. This product has a Ø 4 mm rigid socket in handle accepting spring-loaded and Ø 4 mm plugs with rigid insulating sleeve.
Technical specifications
| Rated category | CAT IV | |
| Connection | socket 4 mm | |
| Colour | black | |
| Rated Voltage | 1000 V | |
| clamping force range | thread M5 | |
| Length | 170 mm | |
| contact surface | nickel-plated | |
| Rated current | 30 A |
Download
Logistics
| Customs tariff number | 85369010 |
Compliance
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
