66.9435-21 | Stäubli Electrical Connectors
Flat measuring gripper, black, max. 12 mm, L 170 mm, CAT IV, socket 4 mm, 66.9435-21
Unit Price (€ / pc.)
51.8364 € *
Available: 4 pcs.
Total Price:
51.84 € *
Price list
Quantity
Price per unit*
1 pcs.
51.8364 €
5 pcs.
48.7305 €
10 pcs.
46.8741 €
50 pcs.
44.8035 €
100 pcs.
42.9352 €
*incl. VAT plus shipping costs
Subject to prior sale

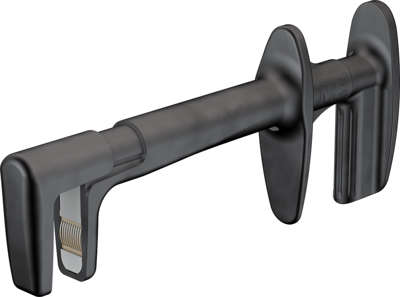

Flat test clip, 66.9435-21, Stäubli Electrical Connectors
The 66.9435-21 is a black flat test clip for fast and safe contacting on busbars, example for the synchronization and for standby power units.This product has a Ø 4 mm rigid socket in handle accepting spring-loaded and Ø 4 mm plugs with rigid insulating sleeve.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 12 mm | |
| Connection | socket 4 mm | |
| Colour | black | |
| Contact material | brass | |
| contact surface | nickel-plated | |
| Rated category | CAT IV | |
| Rated Voltage | 1000 V | |
| Rated current | 32 A | |
| Length | 170 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
