66.9116-23 | Stäubli Electrical Connectors
Clamp test probe, blue, max. 0.9 mm, L 122 mm, CAT III, socket 4 mm, 66.9116-23
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
8.1872 € *
Available: 12 pcs.
Total Price:
8.19 € *
Price list
Quantity
Price per unit*
1 pcs.
8.1872 €
25 pcs.
7.1876 €
100 pcs.
6.7949 €
500 pcs.
6.5807 €
1000 pcs.
6.1761 €
*incl. VAT plus shipping costs
Subject to prior sale
Test clip, 66.9116-23, Stäubli Electrical Connectors

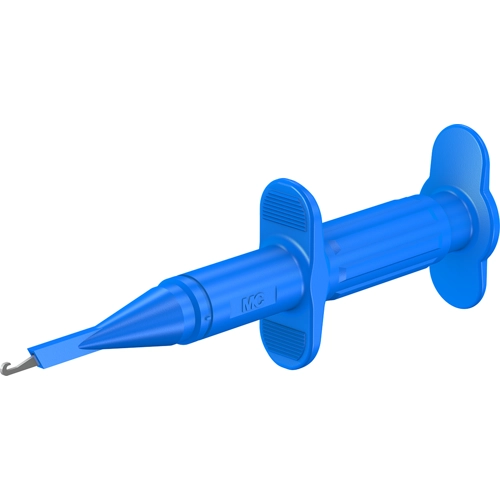

The 66.9116-23 is a blue test clip with rigid hook made of steel for hooking onto wires. This product has a Ø 4 mm rigid socket in handle accepting spring-loaded and Ø 4 mm plugs with rigid insulating sleeve.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 0.9 mm | |
| Connection | socket 4 mm | |
| Colour | blue | |
| Contact material | steel | |
| Rated category | CAT III | |
| Rated Voltage | 1000 V | |
| Rated current | 3 A | |
| Length | 122 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
| Original Packaging | Carton with 25 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
