66.9116-21 | Stäubli Electrical Connectors
Clamp test probe, black, max. 0.9 mm, L 122 mm, CAT III, socket 4 mm, 66.9116-21
Unit Price (€ / pc.)
7.9492 € *
Available: 59 pcs.
Next delivery: 25 pcs. on 2025-11-13
Total Price:
7.95 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9492 €
25 pcs.
6.9853 €
100 pcs.
6.6045 €
500 pcs.
6.3903 €
1000 pcs.
5.9976 €
*incl. VAT plus shipping costs
Subject to prior sale
Test clip, 66.9116-21, Stäubli Electrical Connectors

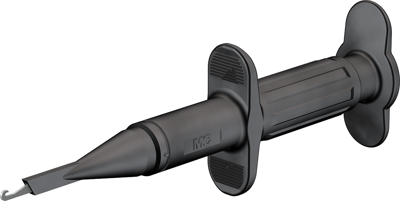

The 66.9116-21 is a black test clip with rigid hook made of steel for hooking onto wires. This product has a Ø 4 mm rigid socket in handle accepting spring-loaded and Ø 4 mm plugs with rigid insulating sleeve.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 0.9 mm | |
| Length | 122 mm | |
| Colour | black | |
| Rated category | CAT III | |
| Rated current | 3 A | |
| Connection | socket 4 mm | |
| Rated Voltage | 1000 V | |
| Contact material | steel |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Original Packaging | Carton with 25 pieces |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
