65.9188-21 | Stäubli Electrical Connectors
Alligator clip, black, max. 6 mm, L 53.5 mm, CAT III, socket 2 mm, 65.9188-21
Unit Price (€ / pc.)
5.3431 € *
Available: 26 pcs.
Total Price:
5.34 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3431 €
10 pcs.
4.9623 €
50 pcs.
4.5458 €
100 pcs.
4.4149 €
500 pcs.
4.2364 €
*incl. VAT plus shipping costs
Subject to prior sale
Aligator clip, 65.9188-21, Stäubli Electrical Connectors

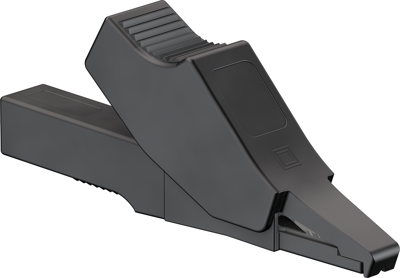

The 65.9188-21 is a black alligator clip made of brass with all-round insulation and has a toothed gripping jaw with fine-wire clamping surface. This product has a Ø 2 mm rigid socket in insulator accepting spring-loaded and Ø 2 mm plugs with rigid insulating sleeve.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 6 mm | |
| Connection | socket 2 mm | |
| Colour | black | |
| Contact material | brass | |
| contact surface | nickel-plated | |
| Rated category | CAT III | |
| Rated Voltage | 600 V | |
| Rated current | 10 A | |
| Length | 53.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
