24.0227-21 | Stäubli Electrical Connectors

Clamp test probe, black, max. 2.5 mm, L 155 mm, CAT III, socket 4 mm, 24.0227-21

Order No.: 86F9437
EAN: 4099891762407
MPN:
24.0227-21
SKPS-4_100 SCHWARZ

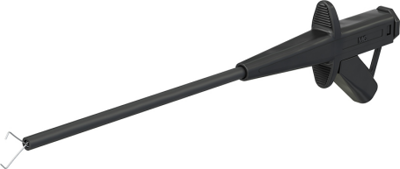

24.0227-21 Stäubli Electrical Connectors Aligator Clips Image 1
24.0227-21 Stäubli Electrical Connectors Aligator Clips Image 2
Image may differ
Unit Price (€ / pc.)
10.4720 € *
Available: 3 pcs.
Leadtime: 1 Week **
Total Price:
10.47 € *
Price list
Quantity
Price per unit*
1 pcs.
10.4720 €
10 pcs.
9.6152 €
50 pcs.
9.0321 €
100 pcs.
8.4490 €
500 pcs.
7.8659 €
*incl. VAT plus shipping costs
**Subject to prior sale

Test clip, 24.0227-21, Stäubli Electrical Connectors

The 24.0227-21 is a test clip with flexible shaft and spring wire grabber (stainless steel) for a good contact to pins and wires in inaccessible places. Especially suitable for measuring voltages. The shaft is silicone insulated and guarantees good heat resistance and flexibility even at low temperatures. Ø 4 mm rigid socket in handle accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve.

Technical specifications
Colour black
clamping force range max. 2.5 mm
Length 155 mm
Connection socket 4 mm
Rated Voltage 1000 V
Contact material stainless steel
Rated current 4 A
Rated category CAT III
Logistics
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
