24.0157-21 | Stäubli Electrical Connectors
Alligator clip, black, max. 11 mm, L 54 mm, CAT II, socket 4 mm, 24.0157-21
Unit Price (€ / pc.)
4.7005 € *
Available: 41 pcs.
Total Price:
4.70 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7005 €
25 pcs.
4.1531 €
100 pcs.
3.6533 €
500 pcs.
3.4867 €
1000 pcs.
3.2725 €
*incl. VAT plus shipping costs
Subject to prior sale
Aligator clip, 24.0157-21, Stäubli Electrical Connectors

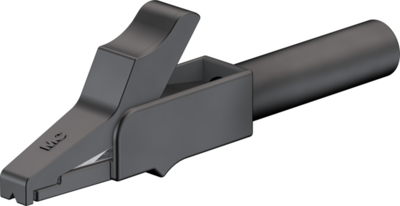

The 24.0157-21 is a small slim black aligator clip made of brass with insulation on all sides and has toothed jaw for rough pick-ups and fine wire surface. This product also has a Ø 4 mm rigid socket in insulator accepting spring-loaded and Ø 4 mm plugs with rigid insulating sleeve.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 11 mm | |
| Connection | socket 4 mm | |
| Colour | black | |
| Contact material | brass | |
| contact surface | nickel-plated | |
| Rated category | CAT II | |
| Rated Voltage | 300 V | |
| Rated current | 15 A | |
| Length | 54 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
