24.0154-22 | Stäubli Electrical Connectors

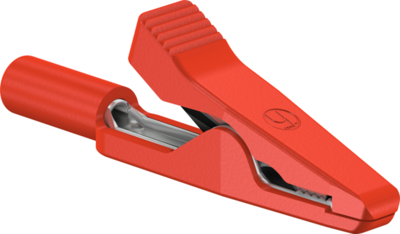

Alligator clip, red, max. 3 mm, L 42 mm, socket 2 mm, 24.0154-22
This item is no longer available.
As an alternative, we recommend the following item:
Alligator clip, red, max. 6 mm, L 53.5 mm, CAT III, socket 2 mm, 65.9188-22
Order No.: 30F3507
Manufacturer: Stäubli Electrical Connectors
per pc. 5.3431 € *
Test clip, 24.0154-22, Stäubli Electrical Connectors
The 24.0154-22 is a 2mm red stripper with unbreakable insulation and contact tongue made of brass , fine wire surface rigid Ø 2 mm socket in the insulating body.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 3 mm | |
| contact surface | silver-plated | |
| Rated Voltage | 30 VAC/60 VDC | |
| Connection | socket 2 mm | |
| Contact material | brass | |
| Length | 42 mm | |
| Rated current | 6 A | |
| Colour | red |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
